Flow Trans­former for Improv­ing Emissions

flowtransformer

FRIEND­SHIP SYSTEMS reg­u­larly watches out for inter­est­ing design chal­lenges on which to check CAESES® for bugs and missing func­tion­al­ity. Last week one of our IT guys stumbled across an inter­est­ing device to improve emis­sions as intro­duced by VW. After watching the video (1 minute) we thought that this would be a perfect appli­ca­tion for a quick study.

The Geometry Model

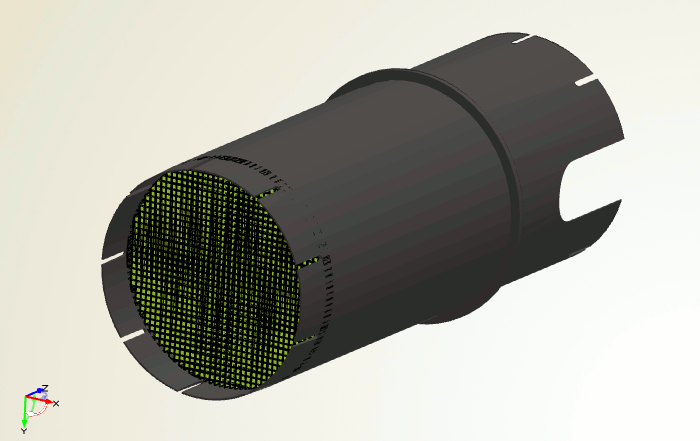

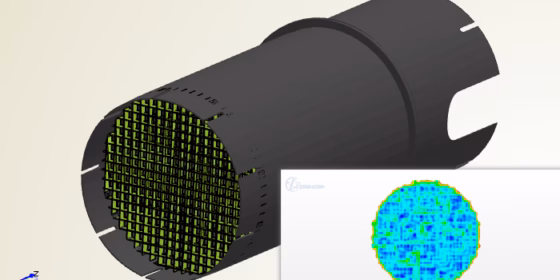

We asked one of our students to set up a para­met­ric model of such a flow trans­former. We wanted to be able to vary the number of grid lines, the thick­ness of the grid wall as well as the length (in flow direc­tion) of the grid. Half an hour later, the student came up with a variable geometry, which is shown in the fol­low­ing pictures:

caeses_model
vw_flow_transformer

If you are more inter­ested in how it was created, then watch this step-by-step video:

Flow Sim­u­la­tion

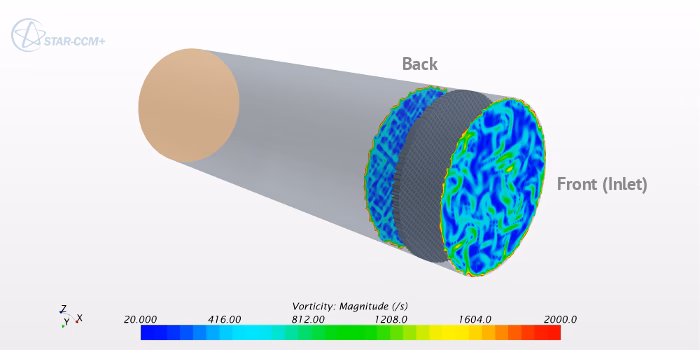

Another student took care of the flow sim­u­la­tion, and quickly set up every­thing in STAR-CCM+, so that we were able to simply check a new design variant with a single click. We made some assump­tions for the incoming flow i.e. we dis­turbed it with some kind of pattern to mimic the tur­bu­lent flow patterns down­stream of an air filter. After testing a little bit with the para­me­ters for the grid thick­ness and grid length, we decided to run a small study for the number of grid lines. Note that when we are saying grid” here, we don’t talk about the CFD mesh, but the grid of the flow trans­former. Here is a typical result that visu­al­izes the tur­bu­lence char­ac­ter­is­tics (vor­tic­ity magnitude):

overallview

The Largest Grid

For the largest grid in our study, we used a number of 10 grid lines, and we received the fol­low­ing Front vs. Back” com­par­isons (i.e. the first picture shows the flow right before the grid, while the second picture is taken right after the grid):

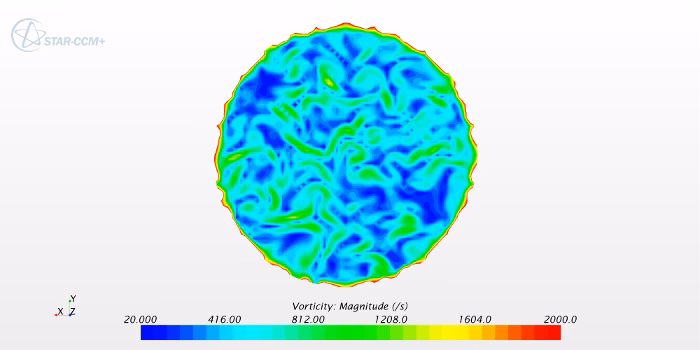

Lrg mesh in front

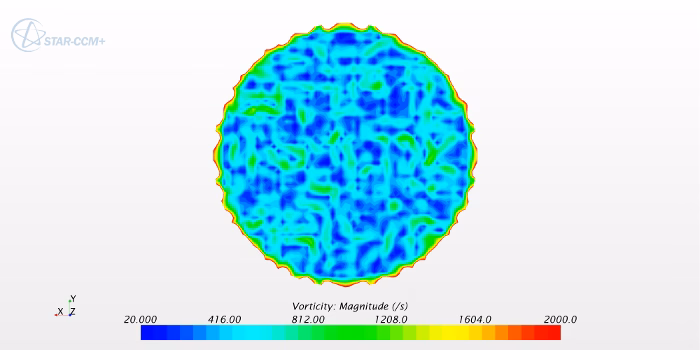

Lrg mesh back

The Mid-Size Grid

The size of a typical mid-size grid was about 20 grid lines. Here are the two screen­shots, again right before and right after the grid:

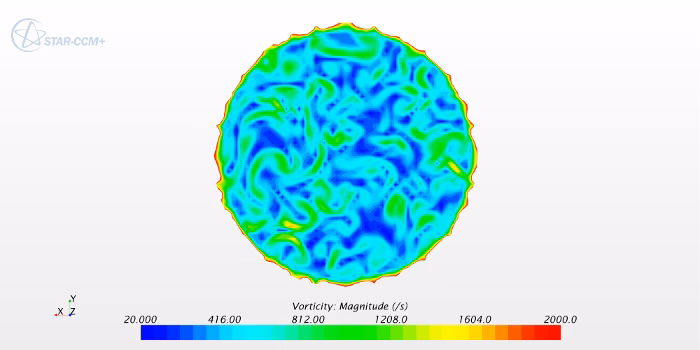

Mid mesh in front

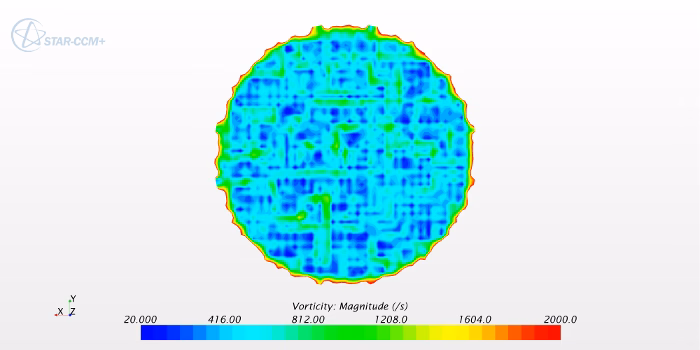

Mid mesh back

The Fine Grid

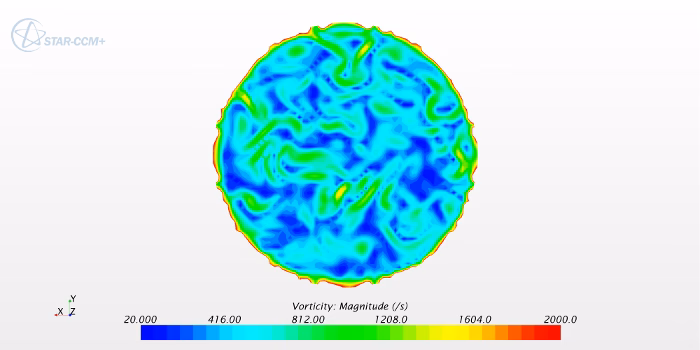

Our finest grid had about 40 grid lines- maybe far too much for such a device, but helpful enough to further visu­al­ize what might happen behind the grid:

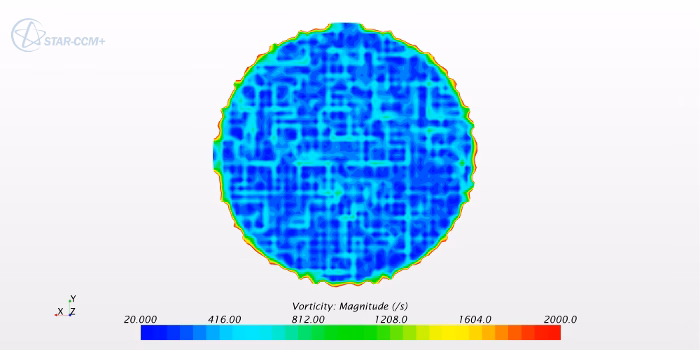

Fin mesh in front
Fin mesh back

Summary

We have to admit that things probably are far more com­pli­cated than given here in our small study. Pri­mar­ily, we wanted to check if we have every­thing in place to realize tasks like this. Anyway, we really enjoyed this work, and finally we could tell our col­league from the IT depart­ment: YES, we can do this with CAESES® :-) Inter­ested in trying out CAESES® for your appli­ca­tion? Then download and install our free version today! It is fully free for com­mer­cial work, and you can directly start setting up your own intel­li­gent model.
