Turbocharger impeller design for mtu Solutions

Turbine blade optimization including scallops for a turbocharger from the R&D project GAMMA, we developed a robust and variable geometry for a turbocharger turbine wheel, together with our customer MTU and the University Darmstadt (GLR)

Try CAESES Contact us
90% Faster design process
B4fa57a5a0f840b2ee98091b9db0d5ed521eceae

About mtu

Mtu Solutions, a Rolls‐Royce Power Systems brand, is a leading provider of high‐performance engines and propulsion systems for marine, power generation, industrial, and defense applications. Known for their durability, efficiency, and advanced engineering, mtu products range from diesel and gas engines to hybrid and fully electric drive systems. With a strong focus on innovation and sustainability, mtu Solutions supports customers worldwide with cutting‐edge technology and comprehensive service solutions.

The challenge

Mtu is continously facing the challenge of achieving sustainable power and propulsion while meeting increasing performance and regulatory demands. A crucial engine component is the turbocharger, which must be well designed and suitably selected. Although early efforts in aerodynamic optimization of the turbocharger wheels were able to achieve significant improvements in performance measures like efficiency and pressure ratios, these designs often failed structural and service life requirements. Key factors like manufacturability, structural integrity, inertia, or eigenfrequencies were initially overlooked, and manual adjustments to meet these criteria often negated the aerodynamic gains. This revealed that focusing solely on aerodynamics was insufficient, highlighting the need for holistic, multi‐disciplinary optimization to truly enhance the turbo components. Additionally, the iterative process required to satisfy all performance, structural, and manufacturing requirements proved to be time‐consuming, significantly slowing down development and delaying the deployment of optimized solutions.

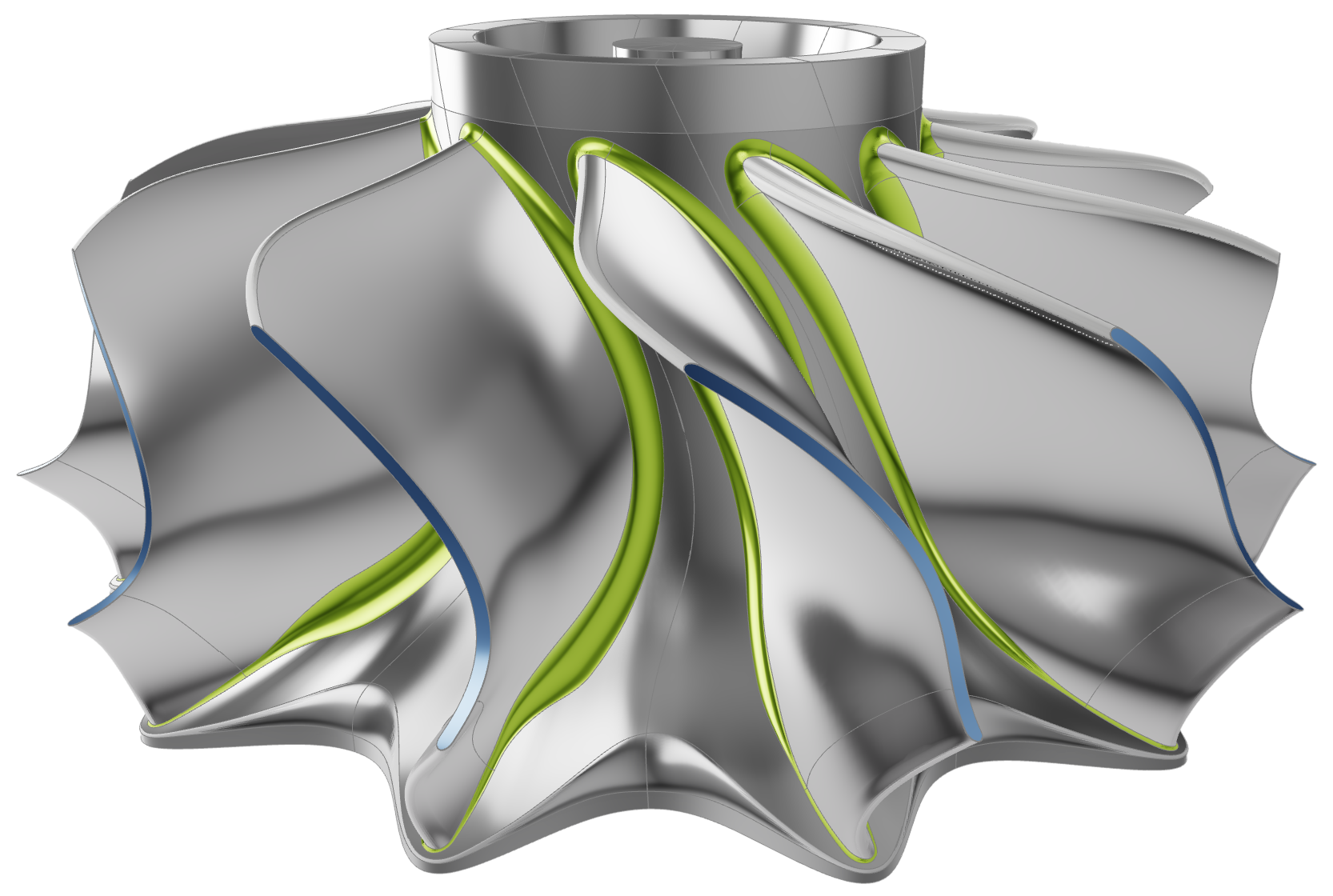

Turbine wheel modeled in CAESES

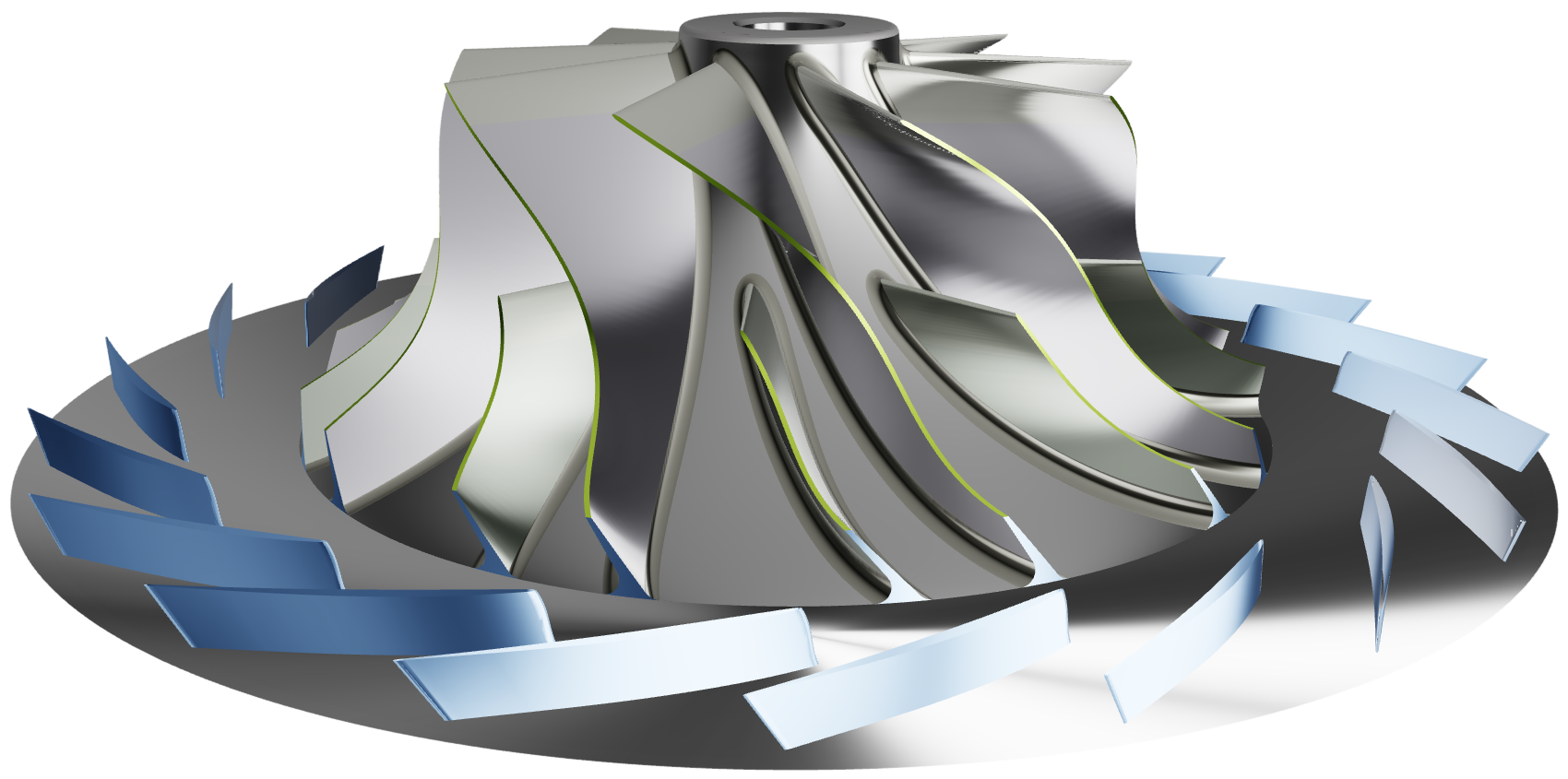

Compressor wheel modeled in CAESES

The solution

The aforementioned challenges stimulated the desire to establish and apply fully automated, multi‐objective and multi‐disciplinary optimization, developing a robust and reusable workflow that incorporated all key aspects. The process begins by gathering all relevant structural, aerodynamic, and design requirements, in close collaboration with the corresponding departments. It relies on a comprehensive and smart parameterization of the impeller geometries in CAESES®, incorporating the following advanced features:

  • Flank‐millable blade sides for the compressor and radially fibered blades for the turbine wheel.
  • Scalloping and optional hub contouring of the turbine wheel to reduce weight and rotational inertia.
  • Self‐adjusting fillets at blade roots to minimize mechanical strain.
  • Parameterized geometry of the backdisc and shaft.
  • Automated generation of simulation domains for all relevant physical disciplines.

This unified geometry model serves as the foundation for all evaluations that are executed in a fully automated way within each iteration of the design exploration or optimization process. These evaluations include:

  • Aerodynamic Performance: CFD simulations for flow analysis and efficiency prediction.
  • Structural Integrity: Simulations for strength assessment and vibration behavior.
  • Thermal Analysis: Heat exposure simulations for the turbine wheel.
  • Mass Properties: Automated determination of mass, moment of inertia, and center of gravity.

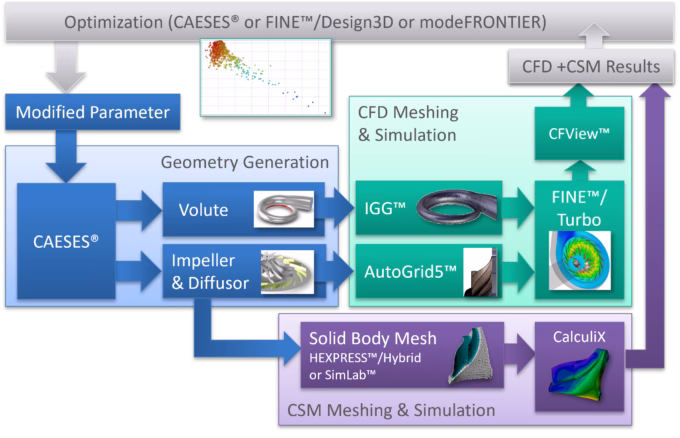

Workflow Compressor Optimization

Integrated workflow for compressor optimization

Workflow Turbine Optimization

Integrated workflow for turbine optimization

Turbine Results

Exemplary optimization results for a mixed‐flow turbine

The benefits

This newly established process, based on CAESES®, has led to significant savings in both time and resources ‐ over 50% compared to the legacy iterative approach. It delivers a design that not only achieves optimal performance, but also balances all critical requirements so effectively that it is very close to the final series production design.

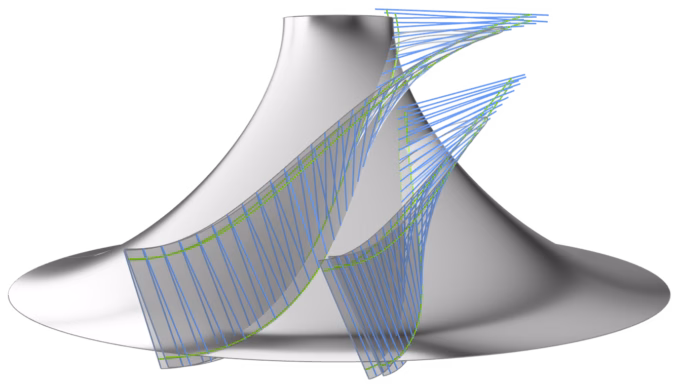

Blade millable rulings

Rulings for flank‐millable main and splitter blade sides

By using CAESES®, we could mas­sively bring down our turbine design cycle from several months to only a few weeks.”

Nicolas Lachenmaier
Engineer for Fluid Dynamics and Thermal Analysis
